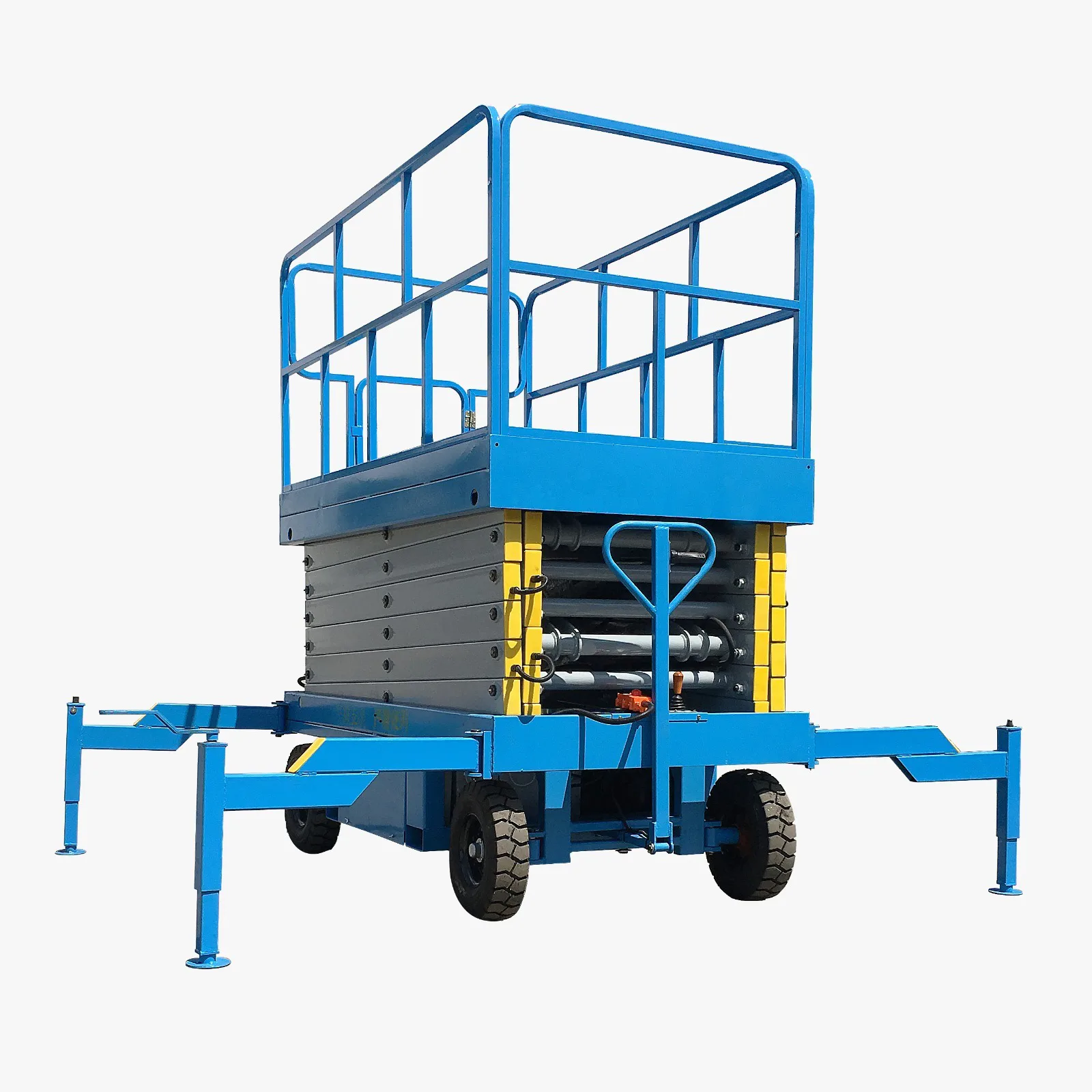

Features :
- Hydraulic pump with built in overload relief.
- Full length deck beam for maximum support.
- Solid plate scissor legs for maximum rigidity.
- Chequered Plate deck and lip with chain.
- All pivot points equipped with lubricated nipples.
- Lowering brake valve to prevent platform free fall.
- Completely sealed, weather resistant Cylinders and piston.
- Motor, controls, push button factory pre wired and tested.
| Model | RE/118-6MTR-500 KG | RE-118/8 MTR-500 KG | RE-118/10MTR-500 KG |
| Platform height | 6m | 8m | 10m |
| Working height | 8m | 10m | 12m |
| Load capacity | 500kg | 500kg | 500kg |
| Platform size | 2106*830*1100mm | 2106*930*1100mm | 2100*1230*1100mm |
| Overall size | 2475*1150*1708mm | 2250*1060*1380mm | 2250*1350*1530mm |
| Total weight | 1000kg (N.W) | 1140kg (N.W) | 1360 kg (N.W) |
| Platform | 3mm non-slip tread plate | 3mm non-slip tread plate | 3mm non-slip tread plate |
| Scissor Strut | Rectangular tube: 120*60*3.75mm
material Q500 high-strength steel |
Rectangular tube: 120*60*3.75mm
material Q500 high-strength steel |
Rectangular tube: 120*60*3.75mm
material Q500 high-strength steel |
| Chassis | Rectangular tube:100*50*3.75mm | Rectangular tube:100*50*3.75mm | Rectangular tube:100*50*3.75mm |
| Cylinder | HSG80/45 *4pc; Sealing ring, durable and non-leakage. | HSG80/45 *4pc; Sealing ring, durable and non-leakage. | HSG70/45 *4pc; Sealing ring, durable and non-leakage. |
| Hydraulic tubing | 2-10-43MPa /Double-layer steel mesh high pressure oil pipe. | 2-10-43MPa /Double-layer steel mesh high pressure oil pipe. | 2-10-43MPa /Double-layer steel mesh high pressure oil pipe. |
| Power and voltage | 1.1kW/380V(220V) | 1.5kW/380V(220V) | 2.2kw/380v/50hz |
| Tire | 700-9 pneumatic tires 4 | 700-9 pneumatic tires 4 | 185/75R14C pneumatic tires*2 |
| Outrigger | 100*50*3.75mm Rectangular tube | 100*50*3.75mm Rectangular tube | 100*50*3.75mm Rectangular tube |
| Control form | Up and down control.
Each operating part uses 36V safety control voltage |
Up and down control.
Each operating part uses 36V safety control voltage |
Up and down control.
Each operating part uses 36V safety control voltage |
| Limit switch | Renmin brand | Renmin | Renmin |
| Shaft pin | 45# is made of round steel, boiled black. | 45# is made of round steel, boiled black. | 45# is made of round steel, boiled black. |
| Hydraulic oil | 32# Great Wall anti-wear hydraulic oil | 32# Great Wall anti-wear hydraulic oil | 46# Great Wall anti-wear hydraulic oil |
| Lifting speed | 4-6m/min, adjustable descent speed | 4-6m/min, adjustable descent speed | 4-6m/min, adjustable descent speed |
| PRICE | 3,45,000 PLUS GST | 3,95,000 PLUS GST | 4,50,000 PLUS GST |
