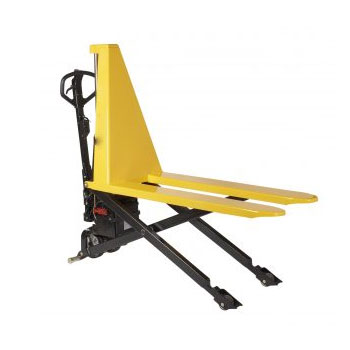

Model No : RE103
Used as Both – Work Table and Pallet Truck Quick Lifting (For Light Load) 18 Strokes to 800/1000 mm.
Manual Lowering Control system prevents the truck from causing damage to the Load.
Used as Both – Work Table and Pallet Truck Quick Lifting (For Light Load) 18 Strokes to 800/1000 mm. Manual Lowering Control system prevents the truck from causing damage to the Load.
Features :
- Three position control Handle.
- Safety overload valve.
- Front and Rear polyurethane wheels.
- Hard Chrome Plated ram
- Designed to take the strain out of any lifting job from ground level to maximum height
- Ideal for use in narrow aisles and confined spaces.
- Latest technology of hydraulic pump and cylinder which requires less pumping effort.
| Model | RE103 | ||
| capacity | tons | 0.8 /1 | 0.8 /1 |
| Min. Fork Height | mm | 90 | 90 |
| Max. Fork Height | mm | 800 / 1000 | 800 / 1000 |
| Steering Wheel | mm | 180 x 50 | 180 x 50 /M.S./PU/UHMW |
| Load Roller Tandem | mm | 82 x 70 | 82 x 70 /CI/MS/PU/UHMW |
| Size Of Fork | mm | 150 x 65 | 150 x 65 |
| Overall Fork Width | mm | 550 | 685 |
| Fork Length | mm | 1150 | 1220 |
| Self-Weight | kg | 225 | 225 |
