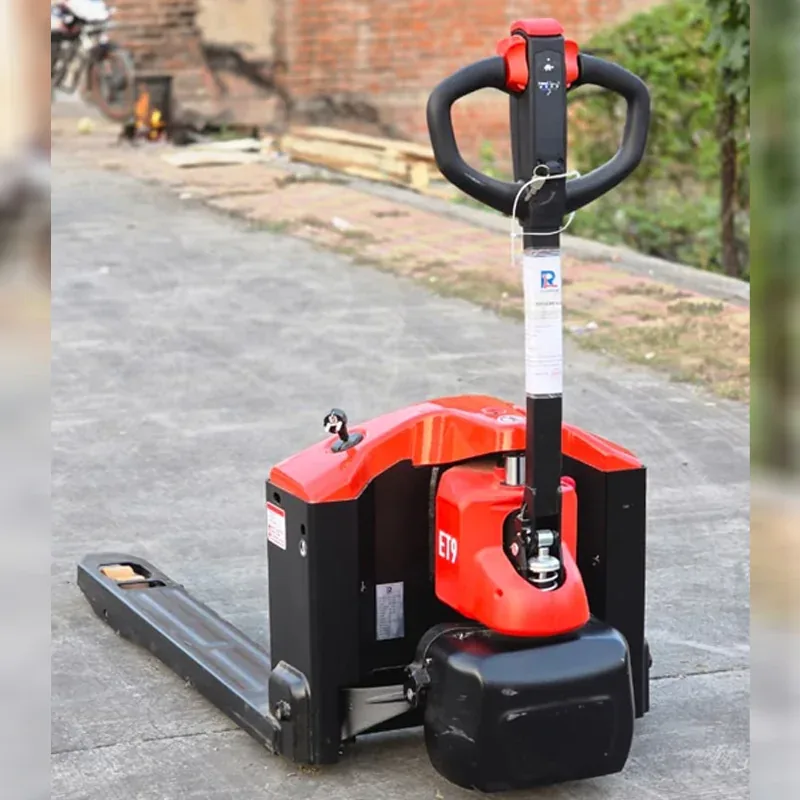

Model No : RE106
1Capacity: 2000 kg, DC power, light-duty conditions.
Fit for small work space, double-side pallet can use
Maintenance-free battery/easy replace / inner charger
Replace hand pallet truck,
Capacity: 2000 kg, DC power, light-duty conditions. Fit for small work space, double-side pallet can use Maintenance-free battery/easy replace / inner charger Replace hand pallet truck, load/unload on vehicles Low voltage protection, truck will stop if voltage is lower, make truck/battery with long using life Emergency stop/hour meter/Battery level indicator
| Model | RE-106 | RE-106 | |
| Type | without platform | with platform | |
| Capacity | (kg) | 2000 | 2000 |
| Load Center | C (mm) | 600 | 600 |
| Max. Fork Height | H (mm) | 205 | 205 |
| Min. Fork Height | h (mm) | 85 | 85 |
| Fork Length | L1 (mm) | 1150 | 1150 |
| Individual Fork Width | b (mm) | 160 | 160 |
| Wheel Base | y (mm) | 1406 | 1406 |
| Turning Radius | Wa (mm) | 1608 | 1946 |
| Traveling Speed With/Without Load | (Km/h) | 3.6/5.4 | 3.6/5.4 |
| Lifting Speed With/Without Load | (mm/s) | 22/32 | 22/32 |
| Lowering Speed With/Without Load | (mm/s) | 50/55 | 50/55 |
| Drive Wheel | 1200W, Ø250mm (AC) | 1200W, Ø250mm (AC) | |
| Power Unit (lifting motor) | (W/V) | 800/24 | 800/24 |
| Traction Battery | 24V/210Ah, 185kg | 24V/210Ah, 185kg | |
| Battery Charger | 25A/24V | 25A/24V | |
| Overall Dimension (L×W×H) | (mm) | 1781×690×1305 | 2125×690×1305 |
| Fork Overall Width | B (mm) | 530 | 680 | 530 | 680 |
| Net Weight | (kg) | 324 | 329 | 338 | 343 |
| Tiller | O | O | O | O |
